DY-PVDF-8040

Description

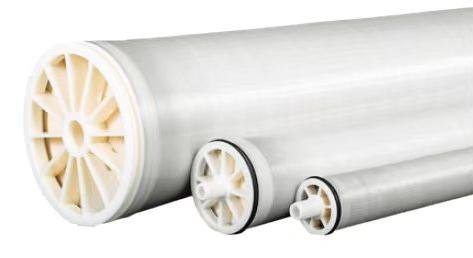

Electrophoretic paint ultrafiltration membrane element PVDF

Product Description

Membrane type: asymmetric homogeneous membrane
Membrane material: polyvinylidene fluoride (PVDF)
Molecular weight cutoff: 100K
Membrane element form: roll membrane, glass fiber winding
Module model: 8040
Effective membrane area: 32㎡

Operating conditions

Maximum inlet pressure: 4.4bar
Recommended inlet pressure 2.5~4.1bar
Minimum outlet pressure: 0.7bar
Recommended outlet pressure: 1~2.7bar
Maximum operating temperature: 50℃
Allowable PH value operation: PH=2~10
Allowable PH value range for cleaning: PH=1~11 (temperature 50℃, cleaning time within 30min)

Design parameters

Water intake: 12T~18T/hr
Water output: 500~1000L/hr
